MIAMI ZOMBIE HUNTER SAIGA 12

Saiga 12 custom built to owners specifications including; Monster muzzle brake, barrel shortened to 19" overall with brake permanently attached, CSS trirail forearm, outsourced ambidextrous charging handles with bolt and carrier polished to mirror finish, triggerguard for AR pistol grips(Ergo used in this case)

Left side charging handle

Detail of heavy duty crenellated "Hold-Off" steel brake

H&K front sight guard with XS Tritium front sight, single plane steel top rails joined with pin where topcover joins previous rear sight block

H&K rear sight mount with XS rear ghostring sight, ambidextrous magazine release, return to zero dust cover ears at bottom rear of topcover, Tapco G2 FCG

 CSS receiver block, side folding mechanisim, pignose, Enindine "ShotShock" recoil reduction tube, MagPul CTR butt stock

Detail of XS tritium dot sight, previous Gas block pressure relief vent rear of puck on mid left side of gasblock relocated to forward of puck in rear position and modified from one large hole to four smaller holes. This allows for higher round count between cleaning of puck and gas block

XS rear ghost ring sight assembly

Detail of return to zero topcover ears, ambidextrous magazine release, left side charging handle. Machine work by Joe Dobric, Tig work by Mike Patterson of Patterson Weaponry, Graphite Black Cerakote by Mike Patterson and myself

BULGARIAN ARSENAL SA93 "De-banned and Complaint"

SA93 restored to correct configuration; gas block with cleaning rod lug, sight block with bayonet lug, forearm retainer with cleaning rod hole. Painted with Krylon High Heat Radiator paint

Threaded barrel with barrel nut, correct gasblock, sight block and forearm retainer

Tapco double hook G2 FCG, U.S. made pistol grip

U.S. made forearm

REMINGTON 870 POLICE MAGNUM CUSTOM BUILD

Modifications and components front to rear; Factory breaching brake(bottom ports tig filled to prevent muzzle blast on mag extension) permanently attached to shortened(18 1/2" overall) vent rib barrel,

Scattergun Tech. HD magazine extension, KZ Tri Rail forearm with MagPul AFG 2 and ladder rail covers,

Vang Comp stainless steel follower, and domed oversized safety,

Mesa Tactical LE stock adapter, Hogue pistol grip, Mesa Tactical single point sling point,

Enindine Shot Shock recoil reduction, Rock River Arms Operator stock

All new springs, ejector, bolt and carrier, shell latches, metal fire control housing, CeraKoted Sniper Grey

FLAT DARK EARTH SAIGA M12(M for MagPul)

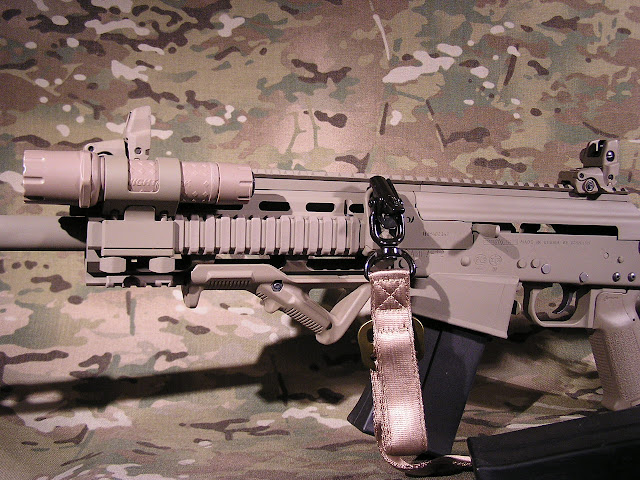

Phantom style muzzle attachment, MD V-Plug, Chaos Tri-rail,Vltor angled scout flashlight mount, Bayco Nightstick LED flashlight, MagPul Angled Fore Grip, MagPul Rail Sling Attachment

MagPul Multi-mission Sling

Factory Saiga magwell, Total Toprail System, MagPul MBUS sights

Left side charging handle, dustcover return to zero "ears" billet aluminum trigger guard/ AR type pistol grip mount

MagPul Ambidextrous Sling Attachment Point, push button folding stock mechansim, ACE Ltd. Pig nose, ITT Enindine Shot Shock, MagPul CTR butt stock

Ambidextrous extended magazine release, MagPul Miad pistol grip

ERGO ladder type rail covers

XS Big Dot round top front sight post

Extended safety lever

Mr. Joiner's Saiga 12

Mr. Joiner's Heavily modified Saiga 12 shotgun. Mods front to rear; Gogun "Talon" breaching standoff permanently attached to shortened and recrowned barrel for finished length of 18 1/4", H&K front sight, UTG quadrail(without top rail), fabricated Galil Micro style charging handle and magazine release, Tapco G2 fire control group, Hogue pistol grip, H&K rear sight, Mississippi Auto Arms rear stock adapter/receiver block, Ace Ltd. push button folding stock mechanisim and pignose, Enidine recoil reduction buffer tube, Mag Pul CTR buttstock, Cerakote "Graphite Black" bake on finish.

Right side rear angle

Above right rear angle showing H&K rear sight, fabricated Galil Micro style charging handle(to clear right side folded buttstock)

Right side view showing H&K rear sight, fabricated Galil Micro style charging handle(to clear right side folded buttstock), fabricated Galil style magazine release, Hogue pistol grip.

Right side forward view showing GoGun Talon breaching standoff, H&K front sight, UTG quad rail.

Left side rear view showing Mississippi Auto Arms stock adapter/receiver block, Ace Ltd. push button folding mechanisim and pignose, Enidine recoil reduction buffer tube, and Mag Pul CTR buttstock.

Left side of receiver

Breaching standoff

Left side forward

Folding stock assembly

Left side forward and above

Right side rear with stock folded, note: charging handle clearance for use with stock folded

SAIGA 12 HEAVILY CUSTOMIZED FOR CUSTOMER

RIGHT FORWARD ANGLE SHOWING SGM "BOSS" BREACHING STANDOFF TIG WELDED TO BARREL SHORTENED TO 18 1/4" WITH MUZZLE ATTACHMENT

CLOSE UP OF LEFT REAR RECEIVER SHOWING PATTERSON WEAPONRY SIGNATURE RETURN TO ZERO DUSTCOVER "EARS", MISSISSIPPI AUTO ARMS RECEIVER BLOCK/STOCK ADAPTER AND HDPS ALL STEEL PUSHBUTTON FOLDING MECHANISIM

GALIL STYLE MAGAZINE RELEASE EXTENSION

AFTERMARKET BENELLI ROTATING CHARGING HANDLE ADAPTED TO SAIGA BOLT CARRIER

H&K REAR SIGHT TIGGED TO DUSTCOVER

RIGHT SIDE VIEW OF EXTENDED MAGAZINE RELEASE

BOLT HOLD OPEN ACTIVATED SHOWING OPEN ACTION AND CERAKOTE THROUGHOUT

H&K FRONT SIGHT TIGGED AND BLENDED TO GAS BLOCK

ENDINE RECOIL REDUCING PISTON STOCK TUBE AND FRONT EDGE OF MAGPUL CTR STOCK

LEFT REAR VIEW WITH STOCK FOLDED

BULGARIAN MADE ARSENAL SLR 106CR WITH A FEW MILD MODIFICATIONS

Barrel cut and crowned with U.S.made extended bulgarian style 4 piece cone flashider permanently attached, Mid West Ind. quad rail forearm, Surefire Scout light, MagPul AFG, Texas Weapons System billet dustcover and apeture sight, Galil magazine release, Russian PKAS optic, Bulgarian nylon sling and Bulgarian new style pistol grip

BULGARIAN MADE ARSENAL SLR 106 UR WITH MILD MODIFICATIONS

Barrel shortened and crowned, Arsenal brand U.S. dummy suppressor permanently attached

A TRIO OF BULGARIAN ARSENAL SLR SERIES 5.56X45 RIFLES

MAADI MAKE OVER BEFORE AND AFTER

ANOTHER MAADI MAKEOVER

ARSENAL INC. SA M5 MILLED RECEIVER MODIFIED

ARSENAL INC. SA M5S 5.56X45 HEAVILY MODIFIED

SA M5S CLOSE UP OF MODIFIED ULTIMAK LOWER FOREND, ULTIMAK UPPER FOREND, T-POD GRIP/BIPOD AND MIDWEST INDUSTRIES SLING POINT

PICATINNY RAIL TIGGED TO DUSTCOVER, GALIL MAGAZINE RELEASE, COMMAND ARMS ACCESSORIES MODULAR PISTOL GRIP

ACE LTD. RECEIVER BLOCK, FOLDING MECHANISIM AND SKELETAL STOCK

RIGHT SIDE BARREL ASSEMBLY SHOWING ONE OFF SUREFIRE MOUNT BY MARVIN PITTS

RIGHT SIDE SHOWING GALIL MAGAZINE RELEASE AND GALIL MICRO BOLT CARRIER

RIGHT SIDE BUTTSTOCK ASSEMBLY

CLOSE UP OF RIGHT SIDE REAR OF DUSTCOVER SHOWING PICATINNY RAIL TIGGED TO DUSTCOVER AND H&K REAR SIGHT ASSEMBLY

CLOSE UP OF GALIL MICRO BOLT CARRIER

CLOSE UP OF H&K FRONT SIGHT AND FRONT OF MODIFIED ULTIMAK LOWER FOREND

CLOSE UP OF CUSTOM VORTEX STYLE FLASH HIDER

CUSTOM SAIGA 12

CLOSE UP SHOWING H&K FRONT SIGHT AND FRONT OF MODIFIED SAIGA RIFLE FOREND

RIGHT SIDE OF RECEIVER SHOWING BLACKTHORN DUSTCOVER WITH H&K REAR SIGHT MOUNTED TO PICATINNY RAIL, TROMIX TRIGGER GUARD AND TAPCO G2 FCG

DETAIL OF MODIFIED SAIGA RIFLE FOREND

LEFT REAR ANGLE

DETAIL OF MODIFIED SGM SUREFIRE SAIGA FOREND

ARSENAL INC. SLR 101S 7.62X39 CLONED INTO GALIL WITH MODIFIED RECEIVER, CUSTOM MUZZLE BRAKE, GAS BLOCK BOTH BY MARVIN PITTS AND ASSORTED IMI GALIL PARTS

VARIOUS VIEWS AND CLOSE UPS OF ARSENAL SLR101S 7.62X39 GALIL CLONE

MORE VIEWS OF ARSENAL INC. SLR101S 7.62X39 GALIL CLONE

SAIGA 12 CUSTOMIZED TO GALIL CONFIGURATION WITH GALIL DUST COVER, GALIL FRONT SIGHT, GALIL FOREND RETAINER AND FOREND, TRIGGER GUARD, MAGAZINE RELEASE AND PISTOL GRIP, TAPCO FOLDING STOCK

SAIGA 308 HEAVILY CUSTOMIZED

RIGHT REAR HALF OF CUSTOM SAIGA 308

RIGHT FRONT HALF OF SAIGA 308

DETAIL OF SAIGA 308 SHOWING MAGPUL PRECISION RIFLE STOCK AND CAA MODULAR PISTOL GRIP

CLOSE UP OF SAIGA 308 SHOWING MAGPUL REAR MBUS SIGHT, GALIL MICRO STYLE FABRICATED CHARGING HANDLE AND GALIL MAGAZINE RELEASE

DETAIL OF REAR SIGHT BLOCK TIG FILLED AND BLENDED AND ALTERNATE VIEW OF GALIL MICRO STYLE CHARGING HANDLE

CLOSE UP OF MAGPUL MBUS FORWARD SIGHT AND WEAVER RAIL TIGGED AND BLENDED TO GAS BLOCK

CLOSE UP OF GALIL MAGAZINE RELEASE

CLOSE UP OF PATTERSON WEAPONRY SIGNATURE  RETURN TO ZERO DUST COVER "EARS" AND ACE LTD. AR15/M16 FOLDING MECHANISIM

CLOSE UP OF GALIL MAGAZINE RELEASE

CLOSE UP OF GALIL MICRO STYLE FABRICATED CHARGING HANDLE

PRE BACK UP SIGHTS

CLOSE UP OF GALIL GALATZ SNIPER MUZZLE BRAKE
